Air moved against noise made, and the direction the panel pushes

The best rack cooling fans for 2026

A rack fan panel exists because a closed cabinet keeps the heat its equipment makes, and choosing one is a trade between air moved and noise made. The first figure is airflow, published in cubic metres per hour or in cubic feet per minute — makers use both, they are not the same number, and the unit has to be read before two panels are lined up. Airflow scales with fan count and with fan diameter, and large fans turning slowly move the same air as small fans turning quickly while making less noise doing it. The second figure is the noise level in decibels, a manufacturer specification quoted for the unit at a stated distance; inside a cupboard it hardly signifies, in a room where someone works it decides everything. The third is where the air goes. A roof panel sits in the cabinet top and draws air upward; a 1U shelf panel mounts in the rack itself and pushes air along it, and its direction can usually be reversed by turning the fans in their frame. Getting that direction wrong turns a cooling panel into a heater. Then control: some panels run whenever they are powered, some carry a thermostat with a settable threshold, and some offer a speed switch on the front. Read the power arrangement — an IEC inlet, a moulded lead, or a low-voltage adapter — and the depth of the panel, which has to clear whatever is mounted behind it. We compare fan count and size, stated airflow and its unit, stated noise level, roof or rack-mount format, rack units occupied, airflow direction, thermostat or speed control and power connection.

The ones worth keeping in the drawer

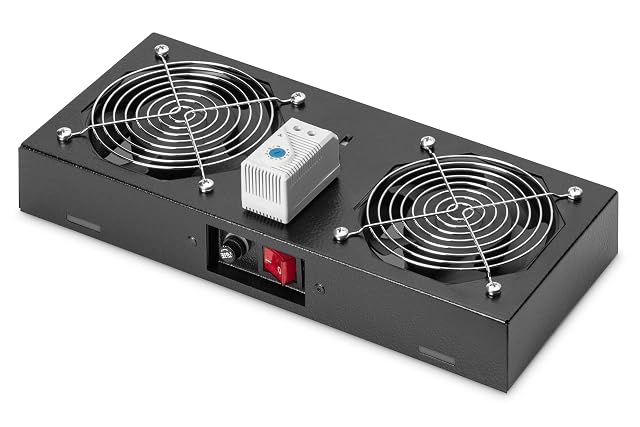

  1. Koscom Connect black roof fan unit with two fans for a network cabinet

    KOSCOM CONNECT roof fan unit, two fans, switch and thermostat

    The cheapest cooling unit in this hub and the least documented product on any shelf of this site: two fans, a switch and a thermostat named in the title, and one sentence of description behind them.

    Fan count
    Two — stated in the title. No bullet repeats or expands on it
    Fan size
    Not published on the listing — no diameter, no frame dimension and no fan model appears. The single bullet calls the fans powerful and stops there
    Stated airflow
    Not published on the listing — no figure of any kind appears. The single bullet says the unit provides optimal air circulation in a network or server cabinet, which is a claim rather than a measurement
    Airflow unit
    Not published on the listing, because no airflow figure is given for a unit to attach to. Two of the seven listings on this shelf publish a figure, one in cubic feet per minute and one in cubic metres
    Stated noise level
    Not published on the listing — no decibel figure and no measuring distance appears anywhere
    Roof or rack-mount format
    Roof — stated in the title as a roof fan unit for a network cabinet, and repeated in the single bullet
    Rack units occupied
    Not published on the listing — a roof unit sits in the cabinet top rather than on the rails, and the page never says so or gives any mounting dimension
    Airflow direction
    Not published on the listing — nothing says which way the fans push, and nothing says whether they can be reversed in their frame
    Thermostat or speed control
    A switch and a thermostat — both named in the title. No threshold range, no display and no control detail is published
    Power connection
    Not published on the listing — no lead, no inlet, no voltage and no plug is named
    Amazon reference
    B0DWN5JJG4 (same reference on 5 Amazon marketplaces)
    EAN
    4043089463980
    • A thermostat and a switch at the lowest price on this shelf
    • A roof unit, which is the format that does not consume a rack unit
    • One bullet of description, and not a single measurement in it

    Best for: A cabinet that is already too warm and a buyer prepared to ask the seller every question this page leaves open.

    ≈ 60 €
    Check price on Amazon

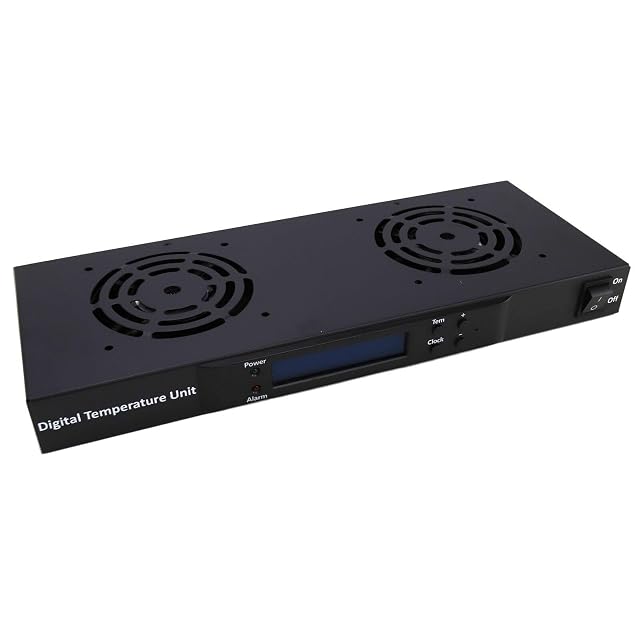

  2. kenable black 19-inch 1U rack fan tray with two fans and an LCD thermostat display

    kenable 19-inch 1U fan tray, two fans, digital thermostat with LCD, 180 mm mounting depth

    The only cooling unit on this shelf with a display on the front, showing the cabinet temperature and the fan setting, and the only one that names the length of the mains lead in the box.

    Fan count
    Two — stated in the fourth bullet, which describes two powerful fans providing air circulation in a 19-inch rack
    Fan size
    Not published on the listing — no diameter and no frame dimension appears. The fourth bullet calls the fans powerful and gives no measurement
    Stated airflow
    Not published on the listing — no figure appears in any bullet. The fourth describes optimal air circulation and effective cooling of IT and network equipment without quantifying either
    Airflow unit
    Not published on the listing, because no airflow figure is given. Two listings on this shelf publish one and they use different units from each other
    Stated noise level
    Not published on the listing — no decibel figure and no measuring distance appears. The fans are described as powerful rather than as quiet
    Roof or rack-mount format
    Rack-mounted — stated in the title as a 48.3 cm 19-inch 1U unit, and in the third bullet as a standard rack mounting with the fixing ears supplied, for data and communication cabinets
    Rack units occupied
    One — stated in the title and in the third bullet, which also gives a mounting depth of 180 mm
    Airflow direction
    Not published on the listing — the title and the fourth bullet describe a two-way fan system, which is not explained anywhere. Whether that names two fans, two directions or a reversible arrangement is not stated, and nothing says which way the air moves
    Thermostat or speed control
    A built-in thermostat switching the fans on and off automatically as the temperature crosses a set threshold, stated in the first bullet, with a large LCD display in the second for monitoring the current temperature and the fan settings. The threshold range is not published on the listing
    Power connection
    A 1.8 m IEC mains lead, included — stated in the fifth bullet as part of a complete set ready for immediate installation
    Amazon reference
    B0FJMDPX4W (same reference on 5 Amazon marketplaces)
    EAN
    5054338118246
    • A display showing the current cabinet temperature, which no other unit here offers
    • The mains lead is in the box and its length is printed
    • The two-way fan system is named twice and explained nowhere

    Best for: A rack where somebody wants to see the cabinet temperature without opening the door, and can spare a rack unit for it.

    ≈ £68 / 90 €
    Check price on Amazon
  3. Intellinet black 19-inch 1U cooling unit with two fans mounted on rack rails

    INTELLINET NETWORK SOLUTIONS 19-inch 1U rail-mounted unit, two fans, 95–115 CFM, 44–49 dB/A, IEC 297-3

    The most measured product on this shelf: airflow, fan speed and noise level all printed as ranges, with a standard cited by number and a frame thickness in millimetres.

    Fan count
    Two — stated in the title, which describes a cooling unit with two fans for 19-inch cabinets, mounted on the profile rails
    Fan size
    Not published on the listing — no diameter and no frame dimension appears. The fourth bullet gives a fan speed of 2700 to 3100 rpm instead, which describes how fast they turn and not how big they are
    Stated airflow
    95 to 115 CFM — stated in the third bullet as the air throughput. It is one of only two airflow figures on this shelf, and the range is given rather than a single number
    Airflow unit
    Cubic feet per minute — the third bullet quotes CFM. The other airflow figure on this shelf is in cubic metres, per minute and per hour, so the two cannot be compared without converting one of them
    Stated noise level
    44 to 49 dB/A — stated in the fifth bullet. The measuring distance is not published on the listing, which is the figure a decibel number needs to be comparable
    Roof or rack-mount format
    Rack-mounted — stated in the title as a unit for mounting on the profile rails of a 19-inch cabinet, at one rack unit
    Rack units occupied
    One — stated in the title
    Airflow direction
    Not published on the listing — nothing says which way the fans push, and nothing says whether they can be turned in their frame. None of the seven listings on this shelf publishes a direction
    Thermostat or speed control
    Not published on the listing — no thermostat, no speed switch and no temperature sensor is named in any of the seven bullets. Four of the seven units on this shelf have one and this is one of the three that do not
    Power connection
    220 to 240 V at 50 to 60 Hz — stated in the sixth bullet as the operating voltage. No lead, inlet or plug type is published
    Amazon reference
    B00NW47CCK (same reference on 6 Amazon marketplaces)
    EAN
    0766623712668
    • Airflow, fan speed and noise all published as ranges, which no other unit here manages
    • Cites IEC 297-3 by number rather than claiming rack compatibility in general terms
    • No thermostat and no speed control, so the fans run whenever they are powered

    Best for: A cabinet needing continuous ventilation with a known air throughput, in a room where 44 to 49 decibels is acceptable all day.

    ≈ 103 €
    Check price on Amazon

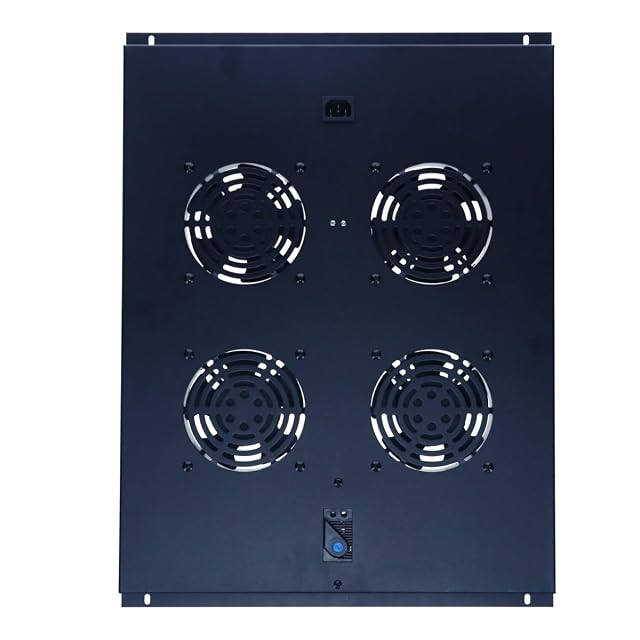

  4. DSIT black four-fan cooling unit for a deep server cabinet

    DSIT four-fan unit with thermostat for 800 mm cabinets, 410 × 40 × 40 mm

    Four fans and a thermostat sold for a specific cabinet depth, with a fourth bullet that does something no other listing in this hub does: it tells you when the product will work less well.

    Fan count
    Four — stated in the title as a fan package of four fans with a thermostat, and named again in the first bullet, which consists of the single word fans
    Fan size
    Not published on the listing — no diameter appears. The fifth bullet gives the unit as 410 × 40 × 40 mm in width, depth and height, which describes the assembly rather than a fan
    Stated airflow
    Not published on the listing — no figure appears in any bullet. The fourth qualifies the unit’s effectiveness instead, saying it decreases with a server cabinet that has perforated doors
    Airflow unit
    Not published on the listing, because no airflow figure is given for a unit to attach to
    Stated noise level
    Not published on the listing — no decibel figure and no measuring distance appears anywhere on the page
    Roof or rack-mount format
    Not published on the listing — the title calls it a fan unit suitable for server cabinets of 800 mm depth, and no bullet says whether it mounts in the roof, on the profile rails or anywhere else
    Rack units occupied
    Not published on the listing — no rack unit figure appears, and the mounting format that would imply one is not stated either
    Airflow direction
    Not published on the listing — nothing says which way the fans push. The fourth bullet is the only statement anywhere on this shelf about where the air ends up, and it is a warning rather than a direction
    Thermostat or speed control
    A thermostat — stated in the title as part of the package. No threshold range, no display and no control detail is published on the listing
    Power connection
    A connecting cable is included, described in the third bullet as 3-port, Del-109. No voltage, no plug type and no lead length is published
    Amazon reference
    B017M06LSA (same reference on 5 Amazon marketplaces)
    EAN
    8719172411638
    • States a condition in which the unit works less well, which nothing else in this hub does
    • Four fans and a thermostat together, at the lower half of this shelf
    • No mounting format anywhere, so nothing says where in the cabinet it goes

    Best for: A deep floor-standing cabinet of around 800 mm where four fans and a thermostat are wanted and the seller can be asked the rest.

    ≈ 113 €
    Check price on Amazon

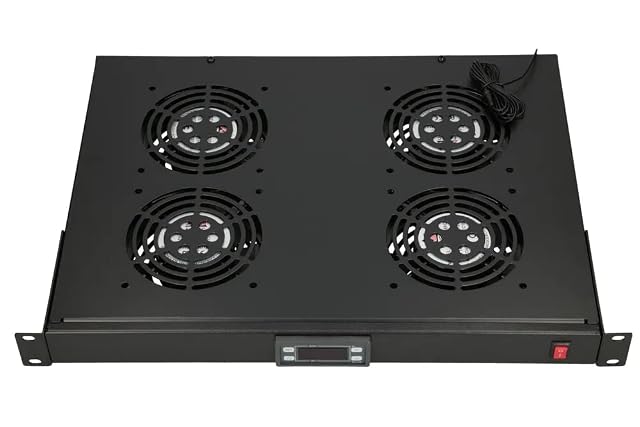

  5. Extralink black four-fan 19-inch cooling panel with a digital temperature display

    EXTRALINK four-fan 19-inch panel with thermostat, digital display, threshold -40 to 50 °C

    The only cooling unit here that publishes the range its thermostat can be set across, and the only one with a fuse named in the description rather than left inside the case.

    Fan count
    Four — stated in the title as a fan panel with four fans for a floor-standing server cabinet
    Fan size
    Not published on the listing — no diameter and no frame dimension appears in any bullet. The second calls the unit both strong and quiet without measuring either
    Stated airflow
    Not published on the listing — no figure appears. The first bullet says the unit secures optimal air circulation in a 19-inch cabinet, protects the equipment and increases its service life, all without a number
    Airflow unit
    Not published on the listing, because no airflow figure is given for a unit to attach to
    Stated noise level
    Not published on the listing — the second bullet describes the unit as quiet and no decibel figure and no measuring distance follows it
    Roof or rack-mount format
    Not published on the listing as one or the other — the title names a fan panel for a 19-inch network cabinet and a floor-standing server cabinet, and no bullet says whether it sits in the roof or on the profile rails
    Rack units occupied
    Not published on the listing — no rack unit figure appears anywhere, and the mounting format that would imply one is not stated either
    Airflow direction
    Not published on the listing — nothing says which way the fans push, and nothing says whether they can be turned in their frame
    Thermostat or speed control
    A thermostat with a digital temperature display, stated in the title and in the second and third bullets, with thresholds settable from -40 to 50 degrees according to the fourth. It is the widest threshold range published on this shelf and the only one given as a span
    Power connection
    Not published on the listing — no lead, inlet, voltage or plug is named. The fifth bullet offers a 36-month warranty instead
    Amazon reference
    B09ZVJY6VC (same reference on 5 Amazon marketplaces)
    EAN
    5903148914718
    • Publishes the threshold range the thermostat covers, which only one other unit here does
    • A built-in fuse, named in the title and nowhere else in this hub
    • No airflow figure at all, on a four-fan panel

    Best for: A floor-standing cabinet where the thermostat needs setting precisely and the buyer already knows how the panel will be mounted and powered.

    ≈ £140 / 132 €
    Check price on Amazon

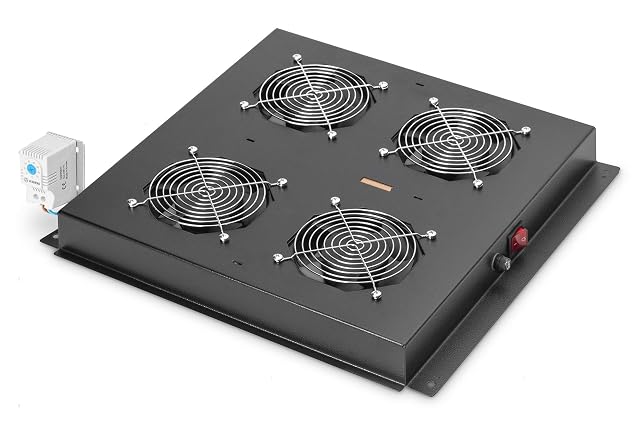

  6. DIGITUS black four-fan roof cooling module for a network cabinet

    DIGITUS four-fan roof module, 9.2 m³/min and 552 m³/h free-blowing, 60–65 dB, 13.8 W

    The best-measured cooling unit in this hub and the only one that says what its airflow figure assumes: 552 cubic metres an hour, free-blowing, which is not the same as inside a closed cabinet.

    Fan count
    Four — stated in the title and in the third bullet, which gives the count alongside the two airflow figures
    Fan size
    Not published on the listing — no diameter and no frame dimension appears in any bullet. The third gives the airflow and the count and no dimension for either fan
    Stated airflow
    9.2 m³/min, and 552 m³/h given as the free-blowing volume flow — both stated in the third bullet. The words free-blowing are the maker’s own and they qualify the figure: it is the throughput with nothing resisting it, rather than inside a closed cabinet
    Airflow unit
    Cubic metres, published twice — per minute and per hour. The other measured unit on this shelf publishes cubic feet per minute, so the two cannot be compared without converting one of them
    Stated noise level
    60 to 65 dB with four fans fitted — stated in the fourth bullet, which ties the figure explicitly to the number of fans running. The measuring distance is not published on the listing. It is the loudest figure on this shelf
    Roof or rack-mount format
    Roof — stated in the title and in the second bullet, which describes a roof fan module and says matching holes are present in the cabinet roof of the ranges named in the first
    Rack units occupied
    None stated, and a roof module consumes none: the second bullet places it in the cabinet roof rather than on the profile rails. No rack unit figure appears on the page
    Airflow direction
    Not published on the listing — nothing says which way the fans push and nothing says whether they can be turned in their frame. The second bullet places the module in the roof and stops there
    Thermostat or speed control
    A thermostat covering 0 °C to +35 °C — stated in the fourth bullet. It is one of two threshold ranges published on this shelf and the narrower of the two
    Power connection
    A rated power of 13.8 W, with an input of AC 50 Hz at 240 V, AC 60 Hz at 220 V or DC 48 V — all stated in the fifth bullet. No lead, inlet or plug type is published
    Amazon reference
    B00DNRPFQG (same reference on 6 Amazon marketplaces)
    EAN
    4016032332855
    • The only listing here that says what its airflow figure assumes, by naming it free-blowing
    • Publishes the airflow in two units, so no conversion is needed to read it
    • Sixty to sixty-five decibels, the loudest figure published in this hub

    Best for: A DIGITUS cabinet of one of the named ranges, in a room where nobody has to sit next to sixty decibels.

    ≈ 92 €
    Check price on Amazon

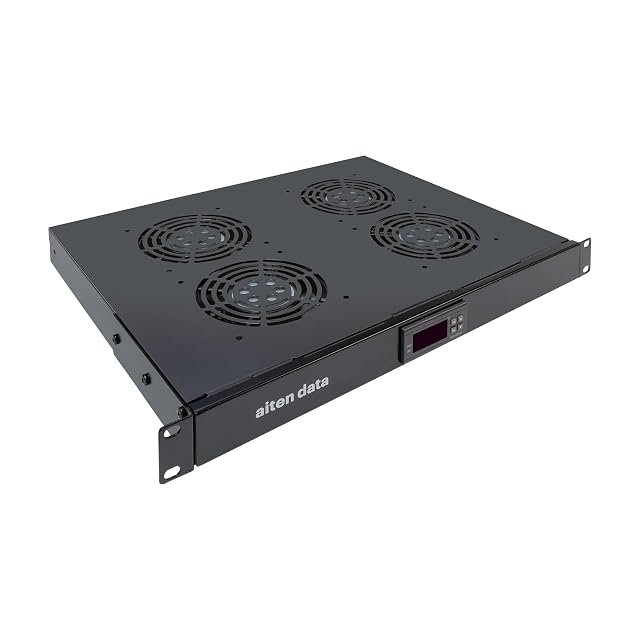

  7. Aiten Data black 19-inch 1U cooling panel with four fans and a digital display

    aiten data 19-inch 1U panel, four 12 cm ball-bearing fans, digital thermostat, 485 × 305 × 45 mm

    Four twelve-centimetre fans on ball bearings, which is the only fan dimension published anywhere in this hub, with a digital stage control and every outer measurement printed.

    Fan count
    Four — stated in the title and in the second bullet, which describes four fans of 12 cm diameter with ball bearings
    Fan size
    12 cm in diameter, with ball bearings — stated in the second bullet. It is the only fan dimension published on this shelf, and the bearing type is named nowhere else either
    Stated airflow
    Not published on the listing — no figure appears in any bullet. The second gives the fan diameter and the bearing type instead, which describe the fans rather than what they move
    Airflow unit
    Not published on the listing, because no airflow figure is given for a unit to attach to
    Stated noise level
    Not published on the listing — no decibel figure and no measuring distance appears anywhere on the page
    Roof or rack-mount format
    Rack-mounted — the first bullet gives a standard width of 19 inches and a height of 1U, and the third describes side anchorages for easy fixing to rack cabinets
    Rack units occupied
    One — stated in the first bullet. The fifth gives the height as 45 mm, which is a rack unit
    Airflow direction
    Not published on the listing — nothing says which way the fans push, and nothing says whether they can be turned in their frame. None of the seven listings on this shelf publishes a direction
    Thermostat or speed control
    A digital display with which the stages can be controlled, and an internal temperature sensor — both stated in the second bullet. No threshold range and no number of stages is published on the listing
    Power connection
    220 V at 50 Hz with a European plug — stated in the second bullet. It is the only listing on this shelf to name the plug type
    Amazon reference
    B08K98WW7T (same reference on 5 Amazon marketplaces)
    EAN
    6940533543527
    • Publishes the fan diameter, 12 cm, which no other listing in this hub does
    • Names the bearing type, which is what decides how a fan ages
    • No airflow figure and no noise level, on a panel with four fans of a stated size

    Best for: A 19-inch rack where the fan size matters for replacement later, and the buyer can spare a rack unit for the panel.

    ≈ 108 €
    Check price on Amazon

Every price named in a summary was read on the date that review carries. What a shop asks today is shown beside the product, and it moves.
