Fibre type, connector and polarity, and only then the length

The best fibre patch cables for 2026

A fibre patch lead is defined by three things that have to match at both ends, and getting any one of them wrong produces a link that never comes up. The first is the fibre type. Multimode fibre, graded OM3, OM4 or OM5 and jacketed in aqua or lime, carries short runs from inexpensive transceivers; single-mode fibre, OS1 and OS2 in yellow, carries long ones. The two are not interchangeable, and the transceiver at each end is built for one or the other. The second is the connector: LC is the small duplex pair used by SFP and SFP+ cages, SC is the larger square one common on provider equipment, and ST and FC survive in older installations. Leads with a different connector at each end exist and are the usual answer when two pieces of equipment disagree. The third is polarity: a duplex lead transmits on one strand and receives on the other, so the pair has to cross between the ends, and a listing states whether the lead is supplied crossed. Beyond that, read the length, the jacket rating for wherever the lead will run, whether it is armoured against a chair leg, and the polish on single-mode connectors — UPC and APC are distinguished by colour and cannot be mated to one another. Bend-insensitive fibre is published as such, and a lead is happier with a gentle loop than with a right angle. We compare fibre type and grade, connector types at each end, simplex or duplex, polarity arrangement, length, jacket rating, polish type and armouring.

The ones worth keeping in the drawer

1.

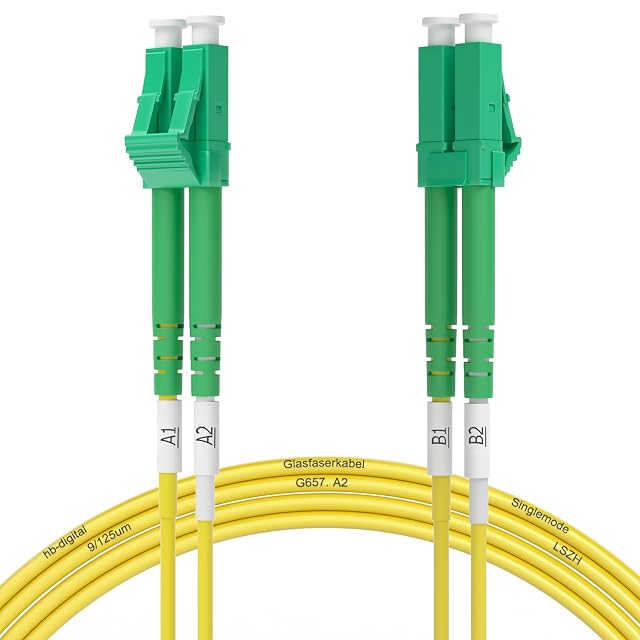

   HB-DIGITAL 1 m duplex OS2 LC/APC to LC/APC, 9/125 µm, LSZH

   The cheapest lead on this shelf and one of the best documented, with a sub-grade named, both loss figures printed and a connector standard cited by number — and no word at all about which way its two strands are arranged.

   Fibre type

   Single-mode, 9/125 µm — stated in the title and in the first bullet, which calls it a high-grade single-mode fibre patch cable

   Fibre grade

   OS2, with the sub-grade G657.A2 named in brackets in the first bullet. Three of the seven leads on this shelf qualify their grade with a G.65x designation and this is one of them

   Connector types at each end

   LC/APC at both ends — stated in the title and in the first bullet, which names the duplex connectors explicitly

   Simplex or duplex

   Duplex — stated in the title, and described in the third bullet as two 2.0 mm fibre lines in a stable parallel arrangement, quoted as 2 × 2.0 mm, said to suit applications with double or redundant connections

   Polarity arrangement

   Not published on the listing — nothing says whether the pair arrives crossed, and no A or B marking is described anywhere. The third bullet describes the parallel construction and stops there

   Length

   1 m — stated in the title. Three of the seven leads on this shelf are 1 m and this is one of them

   Jacket rating

   LSZH — stated in the title and in the fourth bullet, which spells out Low Smoke Zero Halogen and calls the material flame-retardant and low-smoke, suited to interiors, public buildings and technical installations

   Polish type

   APC — carried by the LC/APC designation at both ends. The first bullet quotes an insertion loss of 0.3 dB or less and a return loss of 60 dB or better, the highest return loss figure published on this shelf

   Armouring

   Not published on the listing — no armour, no steel braid and no rodent protection is named. The fifth bullet offers manufacture to IEC 61754-20, testing of every lead for insertion and return loss, and an operating range of -40 °C to +85 °C instead

   Amazon reference

   B0G1YV54TB (same reference on 4 Amazon marketplaces)

   EAN

   4063328061418

   • Both loss figures are printed, and the return loss figure is the highest quoted here
   • The grade is qualified as G657.A2 rather than left at two characters
   • Polarity is never described, on a duplex lead where it decides whether the link comes up

   Best for: The short hop between a fibre termination point and an ONT, where both ends are already LC/APC and a metre is all the run needs.

   ≈ 7 €

   Check price on Amazon
2.

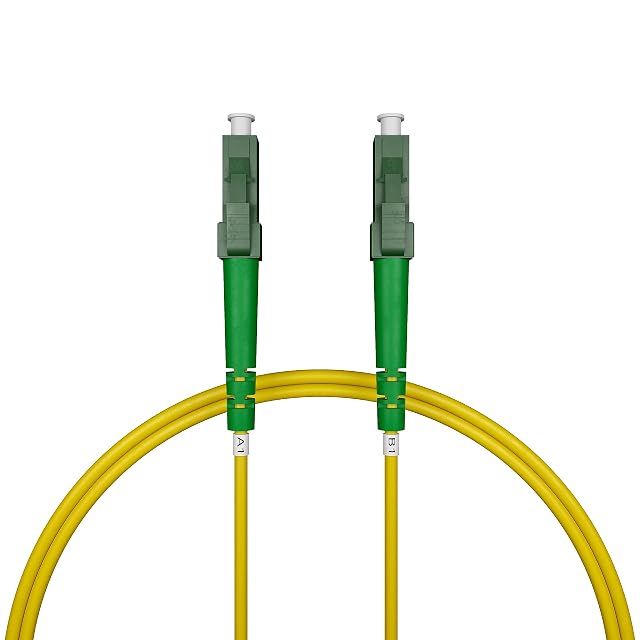

   nexinex 1 m simplex OS2 LC/APC to LC/APC, G.652D, 3.0 mm LSZH

   The lead that documents its glass better than any other here — a fibre standard, two bend grades and the polish angle in degrees — and then publishes not one figure for what its connectors actually lose.

   Fibre type

   Single-mode — stated in the title and in the third bullet as OS2 single-mode 9/125 µm

   Fibre grade

   OS2 — stated in the title and in the first and third bullets. The third adds the fibre standard G.652D and says it is compatible with G.657.A2 and B2; the fifth calls it a laser-optimised OS2 fibre

   Connector types at each end

   LC/APC at both ends — stated in the title and in the first bullet, which gives the APC angle as 8 degrees, the only lead on this shelf to print it

   Simplex or duplex

   Simplex — stated in the title and in the first and third bullets. One strand, one connector at each end

   Polarity arrangement

   Not published on the listing, and a simplex lead has no pair to cross. What the first bullet gives in its place is colour: a yellow jacket and green connectors

   Length

   1 m — stated in the title and in the first and third bullets

   Jacket rating

   LSZH — stated in the third bullet with a diameter of 3.0 mm, and explained in the fourth as Low Smoke Zero Halogen, producing far less toxic smoke in a fire than a PVC cable and recommended for interiors and public areas

   Polish type

   APC — carried by the LC/APC designation and given as an 8-degree angle in the first bullet. No insertion loss and no return loss figure appears anywhere on the page

   Armouring

   Not published on the listing — no armour is named. The fifth bullet lists applications instead: FTTH, 10 Gigabit, and two designations printed as 40GBase-SR4 and 100GBase-SR10, the first of them carrying a stray character in front of the number

   Amazon reference

   B0CDQC1VJR (same reference on 5 Amazon marketplaces)

   EAN

   4744999640040

   • Names the fibre standard G.652D and the two bend grades it is said to match
   • Publishes the APC angle in degrees, which no other lead on this shelf writes
   • Neither loss figure is printed, so the connectors are described only in adjectives

   Best for: The 1 m link between a fibre termination point and an ONT on a German provider installation, where the router end is already LC/APC.

   ≈ 7 €

   Check price on Amazon
3.

   FLYPROFiber 1 m duplex OM4 LC to LC, 50/125 µm, UPC polish, A/B labelled clips

   The only multimode lead here with a full reach table behind it — four rates, four distances, all at 850 nm — and the only one on this shelf whose duplex clip is marked A and B so a cabinet can be read at patching time.

   Fibre type

   Multimode, 50/125 µm — stated in the title and in the third bullet, which calls the fibre insensitive to bending, easy to strip and easy to splice

   Fibre grade

   OM4 — stated in the title and in the first bullet, with a bandwidth of 2000 MHz·km at 850 nm given in the second. The first bullet calls OM4 the preferred fibre specification for 40G and 100G applications

   Connector types at each end

   LC at both ends — stated in the title and in the first bullet, which names 40G BIDI SR, 10G SR, QSFP+ and SFP+ transceivers as what it is meant to join

   Simplex or duplex

   Duplex — stated in the title as 40 GB/100 GB Duplex and in the first bullet as an LC-LC duplex patch cable

   Polarity arrangement

   Embossed A and B position labels on the duplex clip and on the marking ring — stated in the fourth bullet, whose stated purpose is quick identification of Tx and Rx during installation, testing and fault finding. Whether the pair is supplied crossed is not published on the listing; the same bullet names adjustable connector clips, which is how a pair is rearranged by hand

   Length

   1 m — stated in the title, which also gives the range the lead is sold in, from 0.2 m to 100 m

   Jacket rating

   LSZH — stated in the title and in the fourth bullet, which calls the jacket an environmentally friendly LSZH sheath

   Polish type

   UPC — stated in the fourth bullet as a high-grade UPC polish on zirconia ceramic ferrules made in Japan. The third bullet quotes an insertion loss of 0.3 dB or less and a return loss of 30 dB or better

   Armouring

   Not published on the listing — no armour is named. The third bullet gives a minimum bend radius of 7.5 mm instead, and offers the lead for cabinets requiring twenty or more bends and for high-density installations in very small spaces

   Amazon reference

   B09C224CLK (same reference on 5 Amazon marketplaces)

   EAN

   0649910317572

   • Four ethernet distances at four rates, all quoted at 850 nm, the fullest reach table on this shelf
   • A and B labels embossed on the clip and the marking ring, so Tx and Rx can be read by eye
   • The four distances belong to the fibre, and the lead in the bag is 1 m long

   Best for: A short OM4 hop between two SFP+ cages in the same cabinet, where the A and B labels earn their keep every time the patching changes.

   ≈ 8 €

   Check price on Amazon
4.

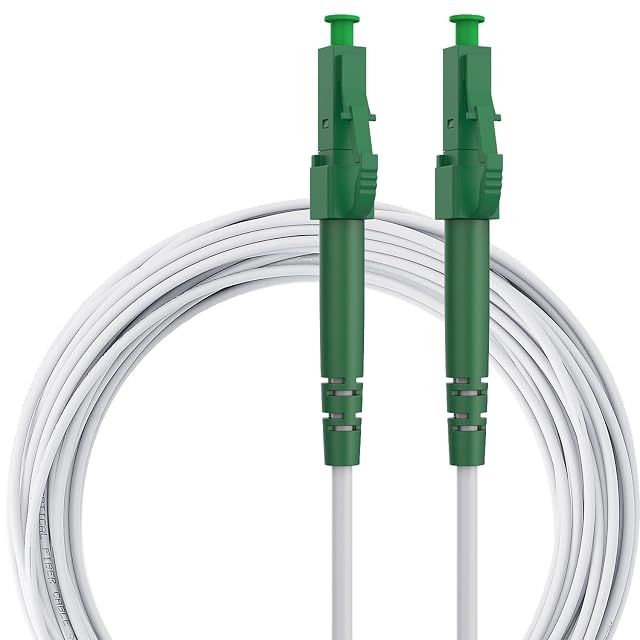

   Speedoptic 10 m simplex single-mode LC/APC to LC/APC, sold on provider compatibility

   The lead for a run that has to cross a flat rather than a cupboard, and the thinnest specification on this shelf: connectors, a length and a list of providers, with the glass itself left entirely undescribed.

   Fibre type

   Single-mode — stated in the title as a simplex single-mode FTTH lead. No core and cladding dimension is published on the listing, and no bullet returns to the subject

   Fibre grade

   Not published on the listing — no OS1 or OS2 designation appears in the title or in any of the four bullets, and no G.65x standard is named. The first bullet offers compatibility with named providers in its place

   Connector types at each end

   LC/APC at both ends — stated in the title and described in the second bullet as high-quality LC/APC connectors credited with a stable connection at low signal loss

   Simplex or duplex

   Simplex — stated in the title. One strand, one connector at each end

   Polarity arrangement

   Not published on the listing, and a simplex lead has no pair to cross

   Length

   10 m — stated in the title. It is the second longest lead on this shelf, behind a 30 m one

   Jacket rating

   Not published on the listing — no LSZH, no PVC and no fire-performance claim appears anywhere. The fourth bullet says instead that the cable is made from high-grade materials and built to withstand daily use over a long service life

   Polish type

   APC — carried by the LC/APC designation in the title and in the second bullet. No angle, no insertion loss and no return loss figure is published

   Armouring

   Not published on the listing — the fourth bullet claims robustness and durability without naming a protective layer, a strength member or a jacket construction

   Amazon reference

   B0DQQCQCDP (same reference on 5 Amazon marketplaces)

   EAN

   3770034512141

   • Ten metres, where four of the seven leads on this shelf are a metre or two
   • Names the providers and the router family it is sold for, which is the question its buyers are actually asking
   • No fibre grade at all, on the second longest lead in this hub

   Best for: A 10 m run from a fibre termination point to a router in another room, where the connector and the length are what the job turns on.

   ≈ 11 €

   Check price on Amazon
5.

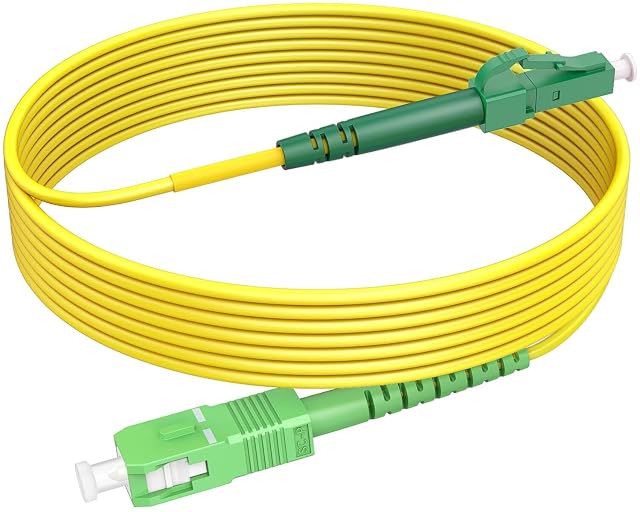

   RamboCables 5 m simplex OS2 LC/APC to SC/APC, 9/125 µm, 2.0 mm jacket

   The only lead in this hub that changes connector between its ends, which is what two pieces of equipment that disagree actually need — with both loss figures printed and the polish named against the reflection figure.

   Fibre type

   Single-mode — stated in the first bullet as sm os2, with the central core and its 9/125 micron coating named and a cable diameter of 2.0 mm given alongside

   Fibre grade

   OS2 — stated in the first and third bullets. No G.65x fibre standard is named anywhere on the page

   Connector types at each end

   LC/APC at one end and SC/APC at the other — stated in the title and in the first and third bullets. It is the only lead on this shelf with a different connector at each end

   Simplex or duplex

   Simplex — stated in the title and in the first bullet, which describes a single strand of glass thinner than a copper cable and less susceptible to interference

   Polarity arrangement

   Not published on the listing, and a simplex lead has no pair to cross

   Length

   5 m — stated in the title and in the first bullet. The second says individual lengths of any fibre lead are available on request

   Jacket rating

   LSZH — stated in the fourth bullet as a flame-retardant Low Smoke Zero Halogen sheath, with a cable diameter of 2.0 mm given in the first

   Polish type

   APC — carried by both connector designations. The third bullet quotes an insertion loss of 0.3 dB or less and a return loss of 50 dB or better, with APC named in brackets beside the return loss figure, and states that the lead meets industry standards for reflectivity and insertion loss

   Armouring

   Not published on the listing — no armour is named. The fourth bullet supplies dust caps on every fibre and an operating range of -10 °C to 60 °C instead, and the fifth cites more than fifteen years of manufacturing experience

   Amazon reference

   B0BN3B3VT6 (same reference on 5 Amazon marketplaces)

   EAN

   0785366001341

   • The only lead here that changes connector between its ends, which is what two disagreeing devices need
   • Both loss figures are printed, with the polish named against the reflection figure
   • The narrower of the two operating ranges published on this shelf

   Best for: A 5 m run between an SC/APC termination and an LC/APC router port, where a straight-through lead would need an adapter at one end.

   ≈ 12 €

   Check price on Amazon
6.

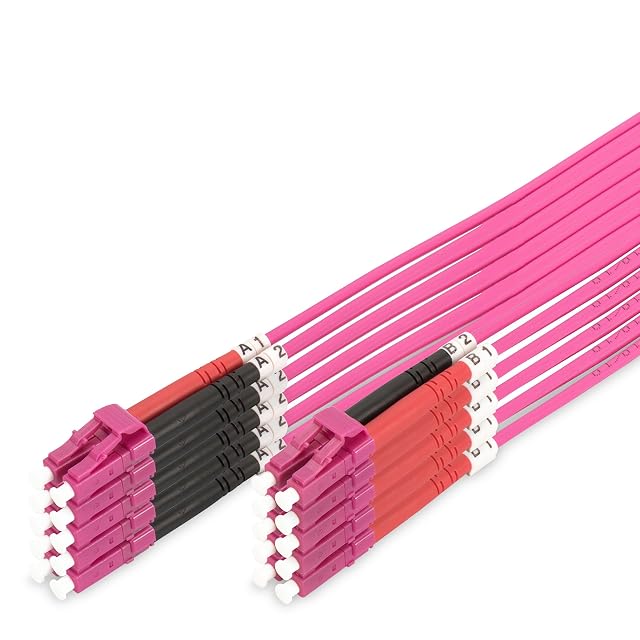

   DIGITUS DK-2533-02-4, five 2 m duplex OM4 LC leads, 50/125 µ

   Five identical duplex OM4 leads in one box, sold with the most detailed rate-and-distance table on this shelf and an individual measurement report said to travel with every lead in the packet.

   Fibre type

   Multimode, fibre type 50/125 µ — stated in the title and in the first bullet, which calls it a multimode duplex

   Fibre grade

   OM4 — stated in the title and in the first bullet, which says the OM4 fibre offers higher transmission rates than OM1, OM2 and OM3, names compatibility with OM3, OM5 and short-wave division multiplexing, and gives wavelengths of 850 nm and 1300 nm

   Connector types at each end

   LC at both ends — stated in the title. The fourth bullet describes ceramic ferrules with dust caps, anti-kink boots and fibre marking

   Simplex or duplex

   Duplex — stated in the title, with five leads to a pack

   Polarity arrangement

   Not published on the listing — the fourth bullet names a fibre marking without saying what it marks or how it reads, and nothing anywhere says whether the pair is supplied crossed

   Length

   2 m — stated in the title, five pieces to a pack

   Jacket rating

   LSZH — stated in the third bullet, which says the outer sheath of the lead is made of halogen-free material and has flame-retardant behaviour in a fire

   Polish type

   UPC — named in the fourth bullet in brackets beside a return loss of 30 dB or better, with an insertion loss of 0.30 dB or less quoted in the same line

   Armouring

   Not published on the listing — no armour is named. The fifth bullet supplies an individual test or measurement report with every lead instead, and says all leads pass a strict quality control after production

   Amazon reference

   B0CXDX324B (same reference on 6 Amazon marketplaces)

   EAN

   4016032496212

   • Five rates each against its own distance and its own designation, the fullest such table here
   • Five leads to a pack, which populates a patch field rather than a single link
   • Polarity is unwritten, on five duplex leads at once

   Best for: Populating a patch field of OM4 links inside one cabinet, where five identical 2 m leads are exactly the order that is wanted.

   ≈ £25 / 24 €

   Check price on Amazon
7.

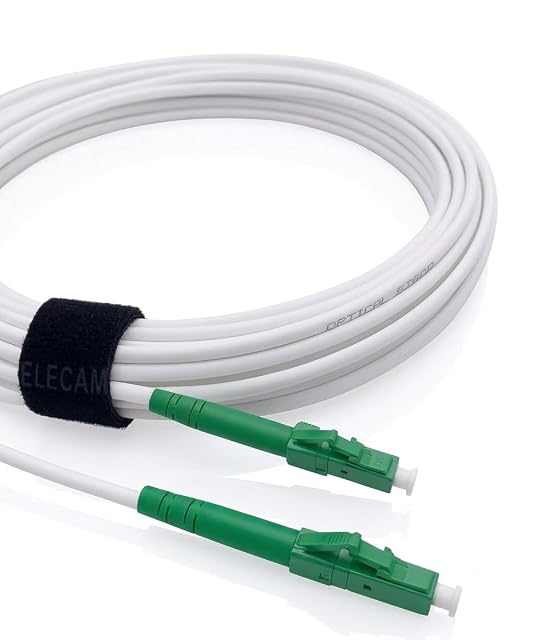

   Elfcam 30 m simplex OS2 LC/APC to LC/APC, 9/125 µm, 7.5 mm bend radius

   The longest lead in this hub by a wide margin, published with a bend radius and a bend-tolerant fibre conformity — and with two of its own descriptions at odds, on the jacket colour and on the jacket material.

   Fibre type

   Single-mode, 9/125 µm — stated in the title and in the first bullet, which describes the lead as running between a fibre termination point and an ONT

   Fibre grade

   OS2 — stated in the first and fourth bullets, with conformity to G.657.A2 and B2 named in the first and a minimum bend radius of 7.5 mm given immediately beside it

   Connector types at each end

   LC/APC at both ends — stated in the title and in the first bullet, and the fourth adds that every lead is supplied with dust caps

   Simplex or duplex

   Simplex — stated in the title and in the first bullet. One strand, one connector at each end

   Polarity arrangement

   Not published on the listing, and a simplex lead has no pair to cross

   Length

   30 m — stated in the title twice over. The fifth bullet gives the range the lead is sold in, from 0.5 m to 100 m

   Jacket rating

   LSZH — stated in the first bullet. The third then describes the outer sheath as a halogen-free, flame-retardant copolymer and names an inner sheath of PVC, which is the only mention of PVC on the page and sits awkwardly beside the LSZH claim

   Polish type

   APC — carried by the LC/APC designation at both ends. No angle, no insertion loss and no return loss figure is published; the fourth bullet says instead that leads are individually packed and supplied with a measurement report

   Armouring

   Not published on the listing — the third bullet names a filled loose tube and non-metallic strength members, which is a construction rather than an armour, and describes the lead as an indoor cable for laying inside buildings

   Amazon reference

   B091G2CN9D (same reference on 6 Amazon marketplaces)

   EAN

   0037603250037

   • Thirty metres, the longest lead on this shelf by a wide margin
   • A minimum bend radius is printed, which matters most on the longest run here
   • The jacket is white in the title and in the first bullet, and yellow in the fourth

   Best for: A long indoor run between a fibre termination point and a router at the other end of a flat, where 30 m of LC/APC is simply what the job needs.

   ≈ £24 / 25 €

   Check price on Amazon
