The bridge chip and the host socket set the ceiling, not the drive inside

The best NVMe enclosures for 2026

An enclosure turns a bare NVMe drive into an external one, and its ceiling belongs to the bridge chip and the host socket rather than to the drive. Read the interface the maker publishes together with its rate in gigabits per second — ten, twenty, or USB4 and Thunderbolt at forty — and read it twice, because the quickest enclosure plugged into a slower socket runs at the socket's rate. The connector is a separate line again: Type-C is a shape, and the leads supplied are part of what you are buying. Compatibility then rests on two published values. The protocol: some enclosures accept only NVMe drives, some only M.2 SATA drives, and some both, which cannot be told from the connector because the M.2 key notch looks much the same either way. The length: M.2 2280 is the standard one, and shorter drives need whichever standoff positions the enclosure provides, which the listing states. Then heat, which is the real differentiator on this shelf. A fast drive inside a sealed aluminium shell depends on the thermal pad supplied to reach the case; a plastic shell holds the heat in and the drive throttles itself to survive it. Look for a stated pad, a fin pattern and the case material. Some enclosures open with a clip and no tools, others want a screwdriver, and the tiny screw that holds an M.2 drive down is famously easy to lose into a carpet. We compare supported drive protocols, supported drive lengths, interface standard and stated link rate, connector type, case material and thermal arrangement, tool-free assembly and cables supplied.

The ones worth keeping in the drawer

1.

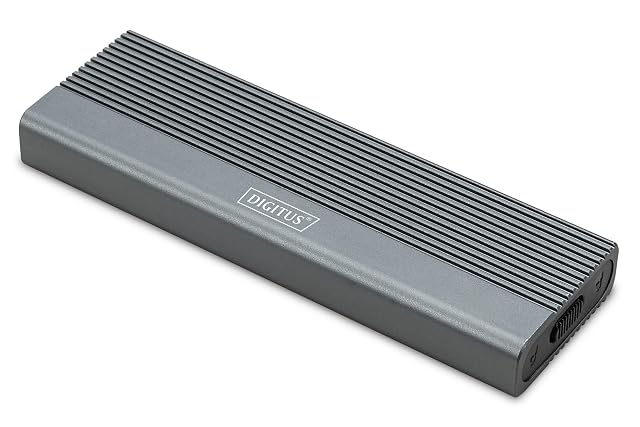

   DIGITUS M.2 SATA B-key enclosure, 2230 to 2280, USB 3.1 Gen2 Type-C, 101 × 32 × 10 mm

   The cheapest enclosure on this shelf and the only one that will not read an NVMe drive at all: a B-key M.2 SATA housing whose chipset is named and whose dimensions are printed to the millimetre.

   Supported drive protocols

   M.2 SATA in the B-key format only — stated in the title and in the second bullet. No NVMe drive will work in it, and the key notch of an M.2 SATA drive and an NVMe drive look much the same, which is why the title says B-Key and why this line says it first

   Supported drive lengths

   2230, 2242, 2260 and 2280 — all four listed in the second bullet, with a capacity of up to 8 TB given in the third

   Interface standard

   USB 3.1 Gen2 — stated in the title and in the first bullet, which adds backward compatibility with USB 3.0, 2.0 and 1.1

   Stated link rate

   6 Gbps — the first bullet says the USB 3.1 Gen2 interface supports transfer rates of up to 6 Gbps. Six gigabits per second is the rate of the SATA III standard rather than of a USB 3.1 Gen2 port, and the listing prints the two figures against each other without reconciling them

   Connector type

   Type-C — stated in the title. The socket on the enclosure is what is described; the cable in the box is not published on the listing

   Case material

   Not published on the listing — no metal and no plastic is named. The fourth bullet gives the dimensions as 101 × 32 × 10 mm and calls the enclosure a suitable companion for travel, the office or university

   Thermal arrangement

   Not published on the listing — no thermal pad, no heatsink and no fin pattern is named. The third bullet credits the JMS576B chipset with reliable and efficient performance and says nothing about heat

   Tool-free assembly

   Tool-free — the second bullet says the M.2 module is inserted without tools, which it gives as the reason the installation is easier

   Cables supplied

   Not published on the listing — no lead is named in any bullet. The fourth says the power comes over USB with no separate mains adapter, which describes the supply rather than the cable

   Amazon reference

   B0DC6S54ZR (same reference on 6 Amazon marketplaces)

   EAN

   4016032497554

   • The only enclosure here for M.2 SATA drives, which the other five will not read at all
   • Names its chipset, the JMS576B, which two of the six listings here never do
   • A 6 Gbps figure quoted against a USB 3.1 Gen2 interface, and the two are not the same thing

   Best for: An M.2 SATA drive pulled out of an old laptop, which none of the other enclosures on this shelf will read.

   ≈ 8 €

   Check price on Amazon
2.

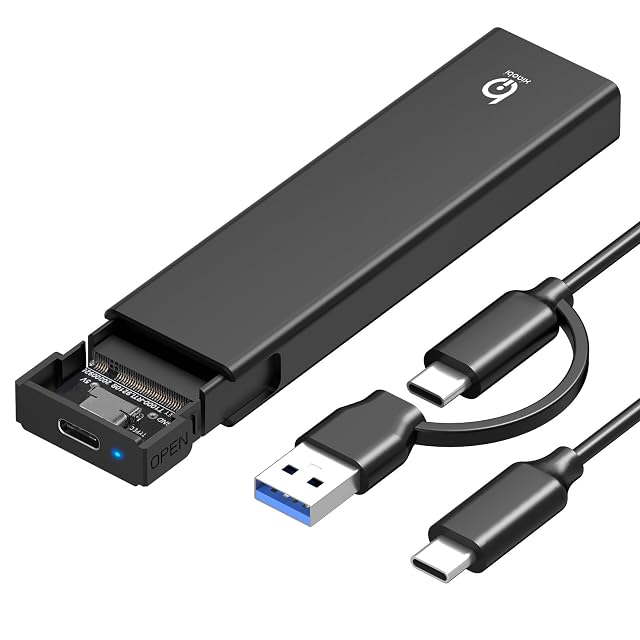

   xiaobi M.2 NVMe enclosure, USB 3.2 Gen 2, 10 Gbps stated, UASP and TRIM, aluminium with a pad

   The only enclosure in this hub that prints the condition attached to its own headline figure: ten gigabits, and a note saying which cable is needed to see them.

   Supported drive protocols

   NVMe PCIe M-key and B+M key only — stated in the second bullet, which adds in a marked note that the enclosure is not compatible with SATA (NGFF) or mSATA SSDs and is not a card reader

   Supported drive lengths

   2230, 2242, 2260 and 2280 — all four named in the second bullet, up to 4 TB, with Samsung 970 EVO and PRO and Crucial P1 and P2 given as examples

   Interface standard

   USB 3.2 Gen 2 — stated in the title and in the first bullet, with backward compatibility to USB 3.1, 3.0 and 2.0

   Stated link rate

   10 Gbps, given as up to about 1000 MB/s in the first bullet, followed by a marked note that a USB-C 3.2 Gen 2 data cable is required for 10 G speeds. It is the only listing on this shelf that attaches a written condition to its own rate figure

   Connector type

   Type-C — stated in the title as a USB-C interface, and named again in the note about the cable required

   Case material

   Aluminium — stated in the fourth bullet, which describes a high-grade aluminium housing dissipating heat in combination with the thermal pad

   Thermal arrangement

   A silicone thermal pad working with the aluminium case — stated in the fourth bullet, which calls the arrangement active cooling and gives sustained load as the case it is for

   Tool-free assembly

   Tool-free — the third bullet describes a latch mechanism into which the drive clicks, with a marked tip that both OPEN buttons must be pressed at the same time to open the case

   Cables supplied

   Not published on the listing — no lead is listed in any bullet. The first bullet states that a USB-C 3.2 Gen 2 data cable is required for the full rate without saying whether one is in the box

   Amazon reference

   B0FCRZ5Z5W (same reference on 6 Amazon marketplaces)

   EAN

   0635393178632

   • States the cable its own 10 Gbps figure depends on, which no other listing here does
   • Says in a marked note that SATA and mSATA drives will not work, rather than leaving it implied
   • The cable is stated as a requirement and never listed as an inclusion

   Best for: An NVMe drive being carried between machines whose USB-C ports are known to be 3.2 Gen 2, with a suitable cable already to hand.

   ≈ $15 / £12 / 14 €

   Check price on Amazon
3.

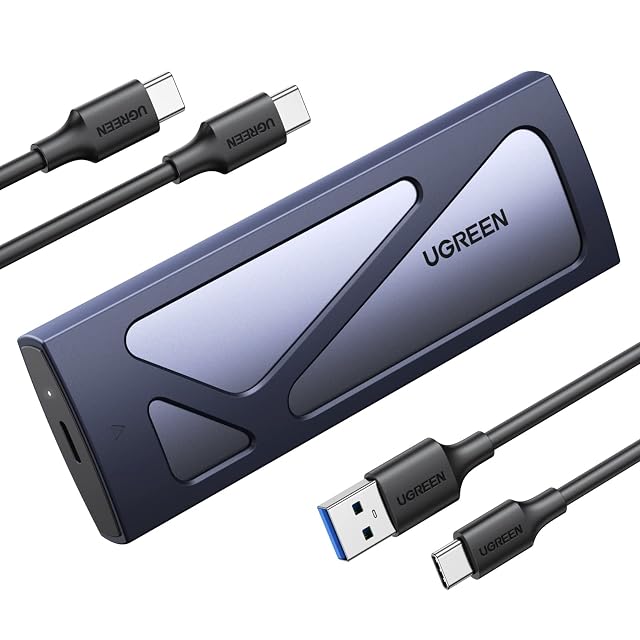

   UGREEN M.2 NVMe enclosure, USB 3.2 Gen 2, 10 Gbps stated, aluminium with a thermal pad and an LED

   An aluminium NVMe housing with a thermal pad and a status light, sold against a list of named drives, whose own speed sentence prints megabits where the figure looks like megabytes.

   Supported drive protocols

   NVMe PCIe M-key and M+B key — stated in the second bullet, which names 970 EVO, 970 EVO Plus, 970 PRO, Crucial P1 and P2 and Corsair MP510 as compatible drives. M.2 SATA drives are not named as supported and are not named as excluded either

   Supported drive lengths

   Not published on the listing — no 2230, 2242, 2260 or 2280 designation appears in any bullet. The second gives a capacity ceiling of 4 TB and a list of drive models in place of a length range

   Interface standard

   USB 3.2 Gen 2 — stated in the title and in the first bullet as a USB C 3.2 Gen 2 interface

   Stated link rate

   10 Gbps — stated in the title and in the first bullet, which adds in the same sentence that the enclosure can reach read and write speeds of up to 950 Mbit/s. The unit printed is megabits per second; this page reports the figure as it appears and does not convert it

   Connector type

   Type-C — stated in the title and in the first bullet

   Case material

   Aluminium — stated in the fourth bullet, which credits the high-grade aluminium housing with excellent heat dissipation

   Thermal arrangement

   A built-in thermal pad working with the aluminium case — stated in the fourth bullet, which says the pad helps the drive shed heat and protects it more effectively

   Tool-free assembly

   Tool-free — the fifth bullet says installation takes seconds and needs no tools, thanks to a built-in locking catch, and adds an LED indicator giving an overview of the operating status

   Cables supplied

   Not published on the listing — no lead is named in any bullet, and no requirement is stated for one either

   Amazon reference

   B09T97Z7DM (same reference on 6 Amazon marketplaces)

   EAN

   6957303895410

   • Names six specific drive models it has been matched to, which no other enclosure here does
   • A status LED on the case, named only here and on one other listing in this hub
   • No drive lengths published at all, on a format defined by four of them

   Best for: One of the six named drives being turned into a portable one, on a machine whose USB-C port is already known to be a fast one.

   ≈ $18 / £16 / 16 €

   Check price on Amazon
4.

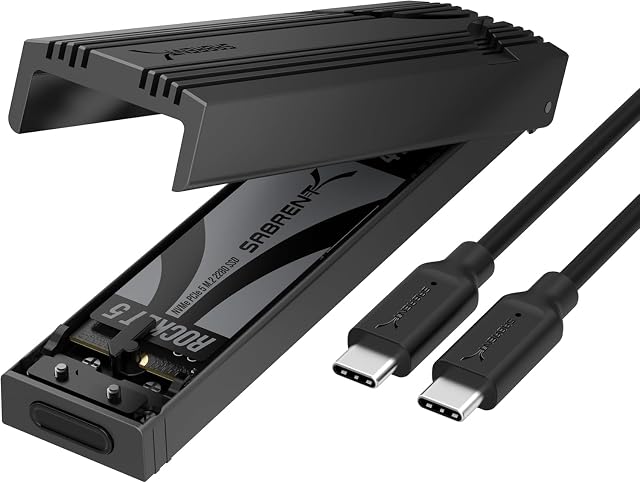

   SABRENT NVMe-only enclosure, 2230 to 2280 up to 8 TB, USB 3.2 Gen 2, aluminium heatsink, Type-A adapter

   The enclosure that puts its own exclusion in the title — NVMe only, no SATA — and ships an adapter so that an older machine with no Type-C socket is not left out.

   Supported drive protocols

   M.2 PCIe NVMe only — stated in the title as no SATA, and again in the first bullet, which says M.2 SATA SSDs are not supported and asks the buyer to check the interface before use

   Supported drive lengths

   2230, 2242, 2260 and 2280 — all four listed in the first bullet, up to 8 TB. It is one of two enclosures on this shelf to state an 8 TB ceiling

   Interface standard

   USB 3.2 Gen 2 — stated in the title and in the second bullet

   Stated link rate

   10 Gbps — stated in the title and in the second bullet as a high data transfer rate over USB-C. No condition on the cable or the host port is published

   Connector type

   Type-C, with a Type-A adapter included for older systems — both stated in the title and in the second bullet

   Case material

   An aluminium heatsink combined with an ABS body — stated in the title and in the fourth bullet, which gives better heat dissipation, reliability and long service life as the reasons

   Thermal arrangement

   An aluminium heatsink — named in the title and in the fourth bullet. No thermal pad is named, which is the part that carries heat from the controller into the metal

   Tool-free assembly

   Tool-free — the third bullet describes installing or replacing the drive without screws, and calls it suited to travel and to portable upgrades

   Cables supplied

   A Type-A adapter is included, stated in the title and in the second bullet. No data cable is named anywhere on the listing, and the fifth bullet says no drivers and no external power supply are needed

   Amazon reference

   B0F933F1G8 (same reference on 6 Amazon marketplaces)

   EAN

   0840025274563

   • Puts the SATA exclusion in the title rather than in a bullet
   • A Type-A adapter in the box, so an older machine is not a second purchase
   • A heatsink is named and no thermal pad, which is what connects a drive to it

   Best for: An NVMe drive that has to work on two machines of different ages, one of them with no Type-C socket at all.

   ≈ £12 / 20 €

   Check price on Amazon
5.

   ICY BOX IB-1807MT-C31, NVMe enclosure up to 2 TB, USB 3.2 Gen 2, write-protect switch, combined cable

   The only enclosure in this hub with a write-protect switch on the outside, and one of two that names the lead in the box — a combined cable covering both socket types.

   Supported drive protocols

   NVMe SSDs — stated in the title and in the first bullet. M.2 SATA drives are neither named as supported nor named as excluded anywhere on the page

   Supported drive lengths

   Common sizes up to 2280 — stated in the first bullet, which gives the capacity ceiling as 2 TB. The individual lengths below 2280 are not listed

   Interface standard

   USB 3.2 Gen 2 — stated in the title and in the third bullet

   Stated link rate

   Up to 10 Gbit/s — stated in the third bullet, which gives copying large volumes of data as the case for it. No condition on the cable or the host port is published

   Connector type

   Type-C — the fourth bullet describes the supplied combined cable as Type-C to Type-C and Type-C to Type-A, which makes the socket on the enclosure a Type-C one

   Case material

   Aluminium — stated in the title. No wall thickness and no finish is published

   Thermal arrangement

   Not published on the listing — no thermal pad, no heatsink and no fin pattern is named in any of the five bullets. The aluminium in the title is the only thermal statement on the page, and it is a material rather than an arrangement

   Tool-free assembly

   Tool-free — the second bullet says the drive is installed without tools and without small screws, which it credits with saving the nerves

   Cables supplied

   A combined cable, Type-C to Type-C and Type-C to Type-A — stated in the fourth bullet, which says the right connection is always immediately to hand. It is one of two enclosures on this shelf to name its lead

   Amazon reference

   B0B4DQNVCX (same reference on 5 Amazon marketplaces)

   EAN

   4250078172925

   • A hardware write-protect switch, which nothing else in this hub offers
   • Both leads in one combined cable, so no adapter is needed for an older machine
   • Two terabytes, the lowest ceiling on this shelf against eight elsewhere

   Best for: A drive that has to be read from a machine without any risk of being written to — a disc image, an archive, evidence of any kind.

   ≈ £20 / 22 €

   Check price on Amazon
6.

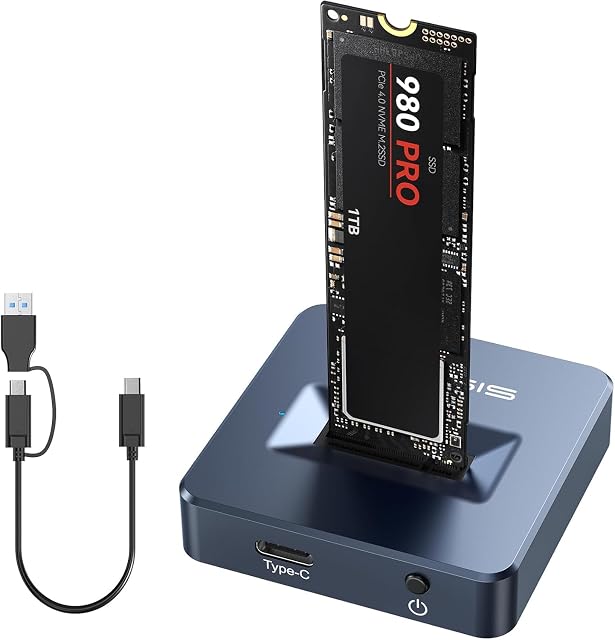

   FREEGENE ACASIS AC-M04, open M.2 dock for NVMe and SATA, 10 Gbps stated, aluminium

   The only M.2 housing in this hub that reads both protocols and the only one that is not a sealed box: an open dock a drive drops into, which is how it stays cool and how it stops being portable.

   Supported drive protocols

   M.2 PCIe NVMe in M-key and B+M key, and M.2 SATA — stated in the title and in the fifth bullet, which names it as an NVMe adapter and an M.2 SATA adapter in the same line. It is the only listing on this shelf that accepts both

   Supported drive lengths

   2230, 2242, 2260 and 2280 — all four named in the fifth bullet, which gives a ceiling of 8 TB

   Interface standard

   USB 3.2 with a Type-C connection — stated in the first bullet

   Stated link rate

   Up to 10 Gbps — stated in the title and in the first bullet, which gives backing up a high-definition film in seconds as the case for it. No condition on the cable or the host port is published

   Connector type

   Type-C — stated in the first bullet as a USB 3.2 Type-C connection

   Case material

   Aluminium — stated in the second bullet, which credits it with excellent heat dissipation and says it outperforms plastic alternatives for reliability and cooling

   Thermal arrangement

   An open horizontal layout — stated in the third bullet, which describes a toaster-like design whose open form improves air circulation and promotes heat dissipation, working with the aluminium construction. No thermal pad and no heatsink is named

   Tool-free assembly

   Tool-free and driver-free — stated in the third and fourth bullets, which describe a drive being pushed in and pulled out of the slot without tools

   Cables supplied

   Not published on the listing — no lead is named in any of the six bullets

   Amazon reference

   B084ZKLQR8 (same reference on 3 Amazon marketplaces)

   EAN

   0705338038977

   • Reads both M.2 protocols, so a drawer of mixed drives needs one device rather than two
   • The open format lets a drive be swapped in seconds without opening anything
   • An open dock is not a portable enclosure, and the drive sits exposed in it

   Best for: A desk where M.2 drives are read, imaged and swapped often, rather than a drive that has to be carried anywhere.

   ≈ $26 / 28 €

   Check price on Amazon
