The internal section decides how many cables actually fit inside

The best cable trunking for 2026

Trunking is the plastic channel that turns a handful of cables along a skirting board into one tidy line, and its whole specification is a cross-section. The internal width and height in millimeters decide how many cables fit, and the honest rule is to leave room rather than fill it: a channel packed to the lid cannot be added to and is hard to close again. Makers publish external dimensions on some listings and internal on others — one listing here publishes both and says which is which, and the rest leave you to guess — and the two differ by the wall thickness, which is a real difference on the smaller sizes. Several of the American listings answer the question a different way, by naming the cables that fit: three 4.5 mm (0.18 in) cords, two HDMI leads, one Cat5. The second decision is how it stays up. Self-adhesive trunking carries a tape on the back and depends entirely on the surface — clean, smooth and painted holds it, textured wallpaper does not — while screw-fixed trunking has a base drilled to the wall and a lid clipped over it, and it is the only kind worth using for a permanent run or a heavy bundle. Some profiles hinge open along their length instead of taking a separate lid. Then the accessories, which are what makes a run look finished rather than improvised: internal and external corners, flat bends, T-pieces and end caps, sold either inside the pack or separately, and the listing says which. Material is normally self-extinguishing PVC and the color is white on most stock; two listings here name the standard that phrase stands for, UL94 V-0. Check the length per piece and how many pieces the pack holds, because a run is made of several. We compare internal width and height, external dimensions, fixing method, hinged or lidded profile, length per piece and pack quantity, accessories supplied, material and color.

By Jean-Benoit Buisson

The ones worth keeping in the drawer

1.

   Electriduct 2 in bore and 88.9 × 25.4 mm (3.50 × 1 in) exterior, both published

   The only listing on this shelf that says which of its figures is the inside — a 2 in channel inside a 3.5 × 1 in exterior — in a three-raceway kit with four named fittings.

   Internal width

   2 in (50.8 mm) — stated in the first bullet as "Channel Dimension: 2" Dia", explicitly as the channel. It is the only internal figure published on this shelf.

   Internal height

   Not separately published — the channel is given as a 2 in diameter, which on a half-round profile makes the usable height about half that

   External dimensions

   3.5 in (88.9 mm) W × 1 in (25.4 mm) H — stated in the fifth bullet as "Exterior Raceway Dimensions", explicitly as the exterior

   Fixing method

   Screws, through pre-drilled holes — stated in the fourth bullet. No adhesive is offered and no screws or anchors are stated as supplied

   Hinged or lidded profile

   Flanged half-round — implied by the 2 in channel inside an 88.9 mm (3.50 in) exterior; no lid, hinge or closure is described

   Length per piece

   Not published — the first bullet gives "Raceway Length: 59"" and the second gives 3 raceways, without saying whether 59 in is each or in total

   Pack quantity

   Three raceways — stated in the second bullet

   Accessories supplied

   Four, each named: one 90° turn, two joint covers and one three-way T — stated in the second bullet. No end caps and no internal or external corners

   Material

   PVC — stated in the third bullet, which calls it paintable PVC material to match décor

   Color

   White — stated in the title

   Amazon reference

   B00QQZ6K9S

   EAN

   0082045468328

   • The only internal figure on this shelf: a 2 in channel, with the 3.5 × 1 in exterior given separately
   • Four fittings named one by one: a 90° turn, two joint covers and a three-way T
   • Raceway Length: 59 in, without saying whether that is each of the three raceways or the total

   Best for: A heavy bundle run in a straight line, screwed down and painted

   ≈ $60

   Check price on Amazon
2.

   A+ ELECTRIC 8.00 m (26 ft) in 20 pieces, both fixings, 29 accessories

   The most accessories of any kit on this shelf, both fixings in the box and the joint-longest run — and not one dimension of the channel.

   Internal width

   Not published on the listing — no width of any kind appears in the title or in the six bullets

   Internal height

   Not published on the listing — no height appears anywhere, and no cable capacity is given by example either

   External dimensions

   Not published on the listing — the only kit on this shelf that gives no width or height in any form

   Fixing method

   Both — the third bullet names peel-and-press adhesive backing on every channel and states that screws and anchors are included as the stronger alternative

   Hinged or lidded profile

   Snap-fit cover — stated in the first bullet, which names the click as the seal and says the cover pops off again to add or remove cables

   Length per piece

   16 in (406 mm) — stated in the second bullet, which gives 20 channels each 16 inches long

   Pack quantity

   Twenty pieces, 315 in (8,001 mm) in total — stated in the title and in the second bullet, and the two agree

   Accessories supplied

   Twenty-nine, itemized by type in the fifth bullet: 20 straight connectors, 3 inside corners, 3 outside corners and 3 T connectors, plus screws and anchors. No end caps

   Material

   Not published on the listing — the fourth bullet says the material will not yellow or warp and never names it

   Color

   White — stated in the title

   Amazon reference

   B07M9VLH4J

   EAN

   8681925735844

   • Twenty-nine accessories itemized by type — 20 straight connectors, 3 inside corners, 3 outside corners and 3 T connectors — the most on this shelf
   • The only kit here that states both fixings are in the box: adhesive backing, plus screws and anchors
   • No section dimension of any kind — the one thing this shelf compares

   Best for: A whole-room run across several wall surfaces, with every corner covered

   ≈ $25

   Check price on Amazon
3.

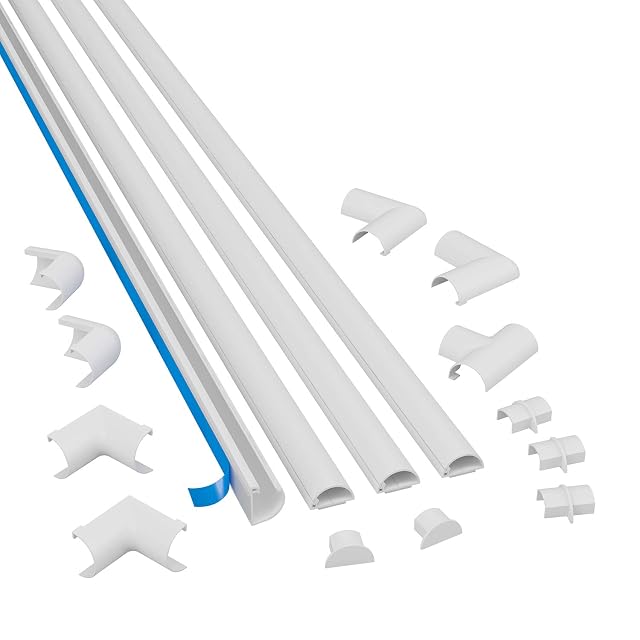

   D-Line 30 × 15 mm (1.18 × 0.59 in) with W and H named, 19 accessories

   A ten-length D-Line kit that prints its section and sizes it by example — three 4.5 mm cords — with 19 accessories counted and never named.

   Internal width

   Not published on the listing — 1.18 in is given as the width in the first and fifth bullets, labeled (W), with no statement of whether it is measured inside or outside

   Internal height

   Not published on the listing — 0.59 in is given as the height, labeled (H), with the same ambiguity. The first bullet implies a usable width of at least 13.5 mm (0.53 in) by stating that three 4.5 mm (0.18 in) cords fit

   External dimensions

   1.18 in (30 mm) W × 0.59 in (15 mm) H — the figures the listing publishes, carried here because the page never says which measurement they are

   Fixing method

   Self-adhesive — stated in the second bullet, which names pre-applied self-adhesive tape for peel-and-stick installation. No screws or anchors are mentioned

   Hinged or lidded profile

   Not published on the listing — no lid, hinge, clip or closure is described anywhere in the five bullets

   Length per piece

   15.7 in (399 mm) — stated in the fifth bullet, which itemizes 10 lengths of 1.18 in × 0.59 in × 15.7 in

   Pack quantity

   Ten pieces, 157 in (3,988 mm) in total — stated in the title and in the fifth bullet

   Accessories supplied

   19 — stated twice, in the third and fifth bullets, and never itemized by type. Whether end caps are among them is not said

   Material

   Not published on the listing — no PVC and no material of any kind is named in the title or in any bullet

   Color

   White — stated in the title, with the fourth bullet describing how to paint it

   Amazon reference

   B08563XMS5

   EAN

   0818165014370

   • Prints a section, 1.18 × 0.59 in, and sizes it by example: three 4.5 mm (0.18 in) cords
   • Nineteen accessories in the box, stated twice
   • The 1.18 × 0.59 in figures are never said to be inside or outside

   Best for: A wall-mounted television with three cables and two corners to get round

   ≈ $27

   Check price on Amazon
4.

   EVZA 25 × 16 mm (0.98 × 0.63 in), 8.00 m, two HDMI stated

   The joint-longest run on this shelf at 315 in, sized by example for two HDMI and two USB or audio cables, with five connector types named and the lowest price per meter here.

   Internal width

   Not published on the listing — 1 in is given in the fifth bullet as "up to 1" Wide", with no statement of whether it is measured inside or outside

   Internal height

   Not published on the listing — 0.63 in is given as "0.63" high" in the same bullet, with the same ambiguity. The bullet adds a capacity of two HDMI cables as an example

   External dimensions

   1 in (25.4 mm) W × 0.63 in (16 mm) H — the figures the listing publishes, carried here because the page never says which measurement they are

   Fixing method

   Either — the second bullet names strong adhesive tape on the back, and the fourth says the installer can choose tape or drywall anchors and screws; it does not say the screws and anchors are supplied

   Hinged or lidded profile

   Not published on the listing — no lid, hinge, clip or cover is described in the title or in any of the five bullets

   Length per piece

   15.7 in (399 mm) — stated in the fifth bullet, which gives the length of each cable channel

   Pack quantity

   Twenty pieces, 315 in (8,001 mm) in total — the title gives 315 in and the fifth bullet gives 15.7 in per channel, which divides to twenty

   Accessories supplied

   Named by type, not counted — the fourth bullet lists couplings, flat elbows, T-pieces, inside elbows and outside elbows

   Material

   PVC — named in the fifth bullet as high-quality PVC material

   Color

   White — stated in the title

   Amazon reference

   B0BPCWH4G3

   EAN

   0860009536036

   • 315 in of channel, the joint-longest supply here with the A+ Electric
   • Sized by example: two HDMI cables plus two USB or audio cables, 3 to 4 cables in all
   • The 1 × 0.63 in section is not said to be inside or outside

   Best for: A whole-room run on smooth painted walls, at the lowest American price per meter here

   ≈ $25

   Check price on Amazon
5.

   Delamu 59.9 × 19.1 mm (2.36 × 0.75 in), UL94 V-0, 6–8 wires

   The widest channel on this shelf that names its capacity — 2.36 × 0.75 in, for 6 to 8 cables — screwed through pre-drilled holes and rated UL94 V-0.

   Internal width

   Not published on the listing — 2.36 in is given in the title and in the second bullet as the width, with no statement of whether it is measured inside or outside

   Internal height

   Not published on the listing — 0.75 in is given as the height, with the same ambiguity. The second bullet adds a stated capacity of 6 to 8 cables

   External dimensions

   2.36 in (59.9 mm) W × 0.75 in (19.1 mm) H — the figures the listing publishes, labeled as wide by high in the second bullet, and carried here because the page never says which measurement they are

   Fixing method

   Screws through pre-drilled holes — stated in the fifth bullet, which says each cord cover is pre-drilled and that screws and anchors are included. No adhesive is offered

   Hinged or lidded profile

   Sliding cover — stated in the sixth bullet, which describes adding or removing cables by sliding the cover up and down. No hinge and no clip is described

   Length per piece

   15.7 in (399 mm) — stated in the title and in the third bullet

   Pack quantity

   Four pieces, 62.8 in (1,595 mm) in total — stated in the title and in the third bullet, and the two agree

   Accessories supplied

   Not published on the listing — no corners, T-pieces, couplers or end caps are named. The third bullet says two covers can be connected end to end and supplies nothing to cover the joint

   Material

   PVC passing UL94 V-0 — stated in the first bullet, which names the standard, its issuing body and its definition

   Color

   White — stated in the title and in the sixth bullet, which gives neutral white as what blends with any decor

   Amazon reference

   B0813B61RC

   EAN

   0619660477734

   • The largest capacity by example on this shelf: 6 to 8 cables, in a 2.36 × 0.75 in section
   • Pre-drilled, with screws and anchors in the box
   • Only 62.8 in of channel, the shortest supply here

   Best for: Six to eight cables dropping from a wall-mounted television to a socket

   ≈ $24

   Check price on Amazon
6.

   Delamu 24 × 14 mm (0.94 × 0.55 in), UL94 V-0, click on and off

   A 157 in kit at $3.76 a meter, one of only two on this shelf that name a flammability rating — UL94 V-0 — and sized by example for 2 to 4 wires.

   Internal width

   Not published on the listing — 0.95 in is given in the title as W0.95in, with no statement of whether it is measured inside or outside

   Internal height

   Not published on the listing — 0.55 in is given as H0.55in, with the same ambiguity. A capacity of 2 to 4 wires is stated in the third bullet and in a product-name line

   External dimensions

   0.95 in (24.1 mm) W × 0.55 in (14 mm) H — the figures the listing publishes, labeled W and H in the title, carried here because the page never says which measurement they are

   Fixing method

   Not published on the Amazon.com listing — installation is described as easy, with an Attach & Snap cover, and no tape, screws or anchors are named

   Hinged or lidded profile

   Attach & Snap, stated click-on-and-off — named in the second bullet. Whether the base and cover are separate pieces is not stated

   Length per piece

   Not published on the listing — the title gives 157 in in total and no bullet says how many pieces make it up

   Pack quantity

   Not published on the listing — only the 157 in total appears

   Accessories supplied

   Named, not counted — the seventh bullet says the kit is pre-sectioned with complete matching connectors; no corner, T-piece or end cap is itemized

   Material

   PVC passing UL94 V-0 — the first bullet names the standard, its issuing body and its definition, and the fourth calls the plastic high-quality and free of impurities

   Color

   White — stated in the title. The seventh bullet names the channel as cuttable and paintable

   Amazon reference

   B07GPFDL1K

   EAN

   0747100203923

   • PVC rated UL94 V-0, with the standard and its test explained — one of only two kits here, both Delamu, that name a flammability rating
   • Sized by example for 2 to 4 wires, with a 0.95 × 0.55 in section in the title
   • No fixing method named — no tape, screws or anchors

   Best for: A television with two to four cables, on smooth painted plaster

   ≈ $15

   Check price on Amazon
7.

   Yecaye 15 × 10 mm (0.59 × 0.39 in), one cable, 8 pieces

   The smallest channel and the lowest price on this shelf — 0.59 × 0.4 in for a single low-voltage cable, eight pieces, adhesive — with every other detail left out.

   Internal width

   Not published on the listing — 0.59 in is given in the title as W0.59in, with no statement of whether it is measured inside or outside

   Internal height

   Not published on the listing — 0.4 in is given as H0.4in, with the same ambiguity. The first bullet states the capacity as one low-voltage cable and names four kinds

   External dimensions

   0.59 in (15 mm) W × 0.4 in (10.2 mm) H — the figures the listing publishes, labeled W and H in the title. It is the smallest section on this shelf

   Fixing method

   Self-adhesive — stated in the second and third bullets, which name reliable mounting tape with strong adhesive properties. No screws or anchors are mentioned

   Hinged or lidded profile

   Not published on the listing — no lid, hinge, clip or cover is described in the title or in any of the five bullets

   Length per piece

   Not published on the listing — the title gives 113 in in total and the second bullet gives 8 channels, which divides to about 359 mm (14.1 in), but no piece length is stated

   Pack quantity

   Eight pieces — stated in the second bullet, which gives 8 cable channels for any residential or office project

   Accessories supplied

   Not published on the listing — the second bullet says the kit includes 8 cable channels and "some parts", and nothing is counted or named

   Material

   Not published on the listing — no PVC and no material of any kind is named in the title or in any bullet

   Color

   White — stated in the title

   Amazon reference

   B07D8WVJWF

   EAN

   0711766624644

   • Sized honestly for one cable — a power cord, one Cat5, one speaker wire or one lamp cord
   • The smallest section on this shelf, 0.59 × 0.4 in, for a run that should barely show
   • One cable only — a second needs a second run

   Best for: One visible cable — an Ethernet run, a lamp flex, a television power lead

   ≈ $13

   Check price on Amazon
