Joule rating, clamping voltage, and a light that says the protection is still there

The best surge protectors for 2026

A surge protector is a sacrificial component inside a socket strip, and the specification is more standardised than the marketing around it suggests. The joule rating is the headline: it states the total energy the protective components are specified to absorb, and because those components degrade a little with every event, a higher figure describes a longer working life rather than a stronger single defence. The clamping voltage, sometimes published as a voltage protection rating, says at what level the device begins to divert, and lower is better. Response time is quoted in nanoseconds. Standards are named on the better listings — the IEC 61643 family, and UL 1449 on units sold across several markets — and a listing that names none while quoting a very large joule figure deserves a second look. The other half of the purchase is the socket strip itself: how many outlets, how they are spaced, and whether the wide spacing that fits a mains adapter is on every one or only on two. Note whether telephone, coaxial or network lines are protected as well, since those paths run into the same room. Then the practical part: lead length, a switch per outlet or one master switch, a keyhole for mounting, and a status light that shows the protection is still present rather than merely that power is flowing. That light is the only outward sign a strip has already done its work and stopped. We compare joule rating, clamping voltage, response time, standards named, outlet count and spacing, protected line types, cable length and status indicators.

The ones worth keeping in the drawer

1.

   Logilink PDU8A01, 19-inch 1U strip, C13 outlets, 10000 A stated, 2 m lead, 483 × 45 × 45 mm

   A rack strip that prints one protection figure and prints it in amperes, on a page where the joule rating, the clamping voltage and the response time are all absent.

   Joule rating

   Not published on the listing — no joule figure appears anywhere. What the third bullet gives instead is a maximum of 10000 A against the surge protection, and an ampere is a current rather than an energy. The two describe different quantities and this page does not convert one into the other

   Clamping voltage

   Not published on the listing — no voltage protection rating and no clamping level appears. The second bullet gives 250 V AC as the supply rating of the strip, which is what it runs on and not the level at which anything begins to divert

   Response time

   Not published on the listing — no figure in nanoseconds and no timing of any kind is given

   Standards named

   IEC 60320 — stated in the title and in the second bullet, and it is the standard that specifies the C13 appliance coupler rather than anything to do with surges. No surge-protection standard is named: neither the IEC 61643 family nor UL 1449 appears on the page

   Outlet count

   Eight in the title, seven in the bullets — the title calls the strip 8-way and the second bullet lists 7× IEC60320 C13 sockets. Both figures are printed on the same page and the listing does not reconcile them, so both are reported here as written

   Outlet spacing

   Not published on the listing — no spacing between outlets is given. The fifth bullet publishes the overall dimensions instead, at 483 × 45 × 45 mm, which is the 19-inch rack width at one rack unit of height

   Protected line types

   Mains only — no telephone, coaxial or network line is named anywhere on the page as being protected

   Cable length

   2 m — stated in the third bullet, as an H05VV-F 3 × 1.5 mm² lead with a plug fitted

   Status indicators

   Not published on the listing — no protection status light, no power light and no indicator of any kind is named. The buying advice for this hub asks for a light that shows the protection is still present, and this page does not describe one

   Amazon reference

   B078YGZ1R2 (same reference on 6 Amazon marketplaces)

   EAN

   4052792046588

   • Publishes the electrical ratings of the strip itself: 250 V AC, 50/60 Hz, 10 A and a maximum of 3500 W
   • Names its cable specification in full, as H05VV-F 3 × 1.5 mm² over 2 m
   • No joule rating, no clamping voltage and no response time — the three figures this family is judged on

   Best for: A cabinet full of equipment with C13 inlets, where the rack unit, the coupler type and the current rating are what have to be right.

   ≈ 22 €

   Check price on Amazon
2.

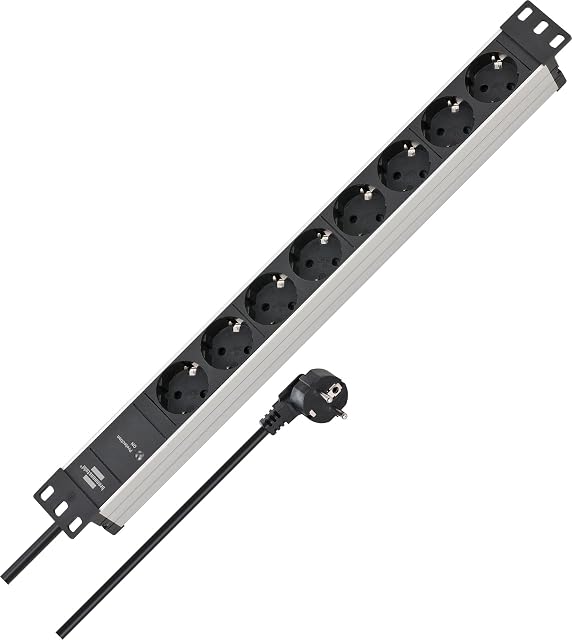

   Brennenstuhl Alu-Line 19-inch strip, 8 earthed sockets at 45°, aluminium case, 2 m lead

   Eight earthed sockets set at an angle so that moulded plugs fit, in an aluminium case built for a cabinet — sold on surge protection that the page never once quantifies.

   Joule rating

   Not published on the listing — no joule figure appears in the title or in any of the five bullets. Surge protection is named in the title and is never quantified anywhere on the page

   Clamping voltage

   Not published on the listing — no voltage protection rating and no clamping level appears

   Response time

   Not published on the listing — no figure in nanoseconds and no timing of any kind is given

   Standards named

   Not published on the listing — no standard is named for the protection. The cable is specified as H05VV-F 3G1.5, which is a cable designation rather than a surge standard, and no IEC 61643 or UL 1449 reference appears

   Outlet count

   Eight — stated in the title and in the first and fourth bullets, as earthed sockets. The count is consistent everywhere it appears

   Outlet spacing

   Not published as a distance — no millimetre figure between sockets is given. What the fourth bullet publishes instead is an arrangement: the sockets are set at 45°, which it names as the reason angled plugs fit

   Protected line types

   Mains only — no telephone, coaxial or network line is named as protected anywhere on the page

   Cable length

   2 m — stated in the first bullet, as an H05VV-F 3G1.5 lead, with increased contact protection named alongside it

   Status indicators

   Not published on the listing — no protection light, no power light and no switch is named. The bullets describe the housing, the socket arrangement and the intended cabinet, and never an indicator

   Amazon reference

   B081ZMPSMJ (same reference on 6 Amazon marketplaces)

   EAN

   4007123662715

   • Sockets set at 45°, which is the arrangement that lets moulded angled plugs sit side by side
   • An aluminium housing named as such, and increased contact protection stated on the sockets
   • Surge protection in the title with no joule, clamping or response figure anywhere behind it

   Best for: A network or server cabinet full of equipment on country-standard plugs, especially moulded ones, where the 45° arrangement is what makes eight of them fit at once.

   ≈ 30 €

   Check price on Amazon
3.

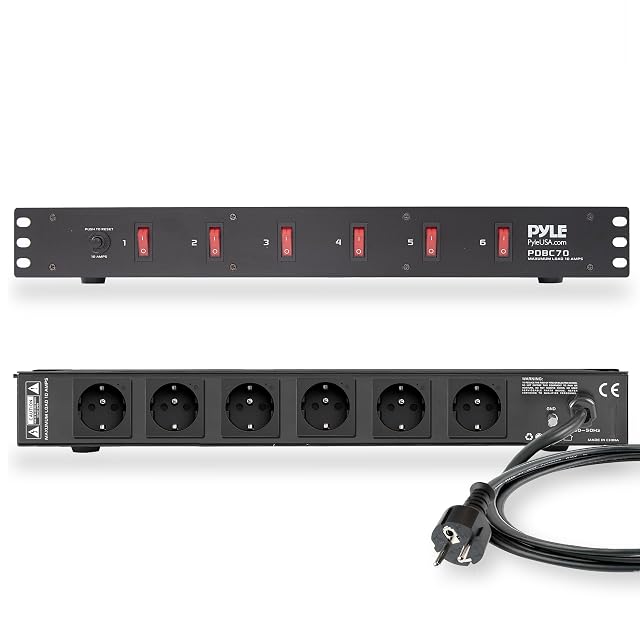

   Pyle PDBC70EU, 6 rear sockets with front switches, mains filter named, 1.83 m lead, about 5.3 cm high

   Six sockets on the back and six switches on the front, in a metal case whose listing says plainly that it does not fit one rack unit — with the surge protection named and never given a number.

   Joule rating

   Not published on the listing — no joule figure appears in the title or in any of the five bullets. The second bullet names integrated surge protection and a mains filter and gives no figure for either

   Clamping voltage

   Not published on the listing — no voltage protection rating and no clamping level appears anywhere

   Response time

   Not published on the listing — no figure in nanoseconds and no timing of any kind is given

   Standards named

   Not published on the listing — no surge standard is named. The cable is described by its cross-section, at 3 × 1.5 mm², which is a construction figure rather than a standard

   Outlet count

   Six — stated in the title and in the first bullet, as six earthed sockets on the rear panel, each individually switchable from a switch on the front. It is the lowest outlet count on this shelf and the only one where every socket has its own switch

   Outlet spacing

   Not published on the listing — no distance between sockets is given. The sockets are on the rear and the switches on the front, which is an arrangement rather than a spacing

   Protected line types

   Mains only — no telephone, coaxial or network line is named. The second bullet names an AC noise filter alongside the surge protection, described as reducing interference, hum and voltage spikes for mixing desks, audio interfaces, amplifiers and power supplies

   Cable length

   1.83 m — stated in the fourth bullet, at 3 × 1.5 mm². It is the shortest lead published on this shelf

   Status indicators

   Not published on the listing — no protection status light is named. What the first and third bullets publish instead are front-panel switches, one per socket, which report and control the supply rather than the state of the protection

   Amazon reference

   B0DFMWHCBC (same reference on 5 Amazon marketplaces)

   EAN

   0842893170060

   • A switch for every socket on the front panel, which no other strip on this shelf offers
   • States its own height at about 5.3 cm and says outright that it is not exactly 1U
   • No joule rating, no clamping voltage and no response time

   Best for: A studio or stage rack where individual pieces of equipment need switching on and off from the front without anybody reaching round the back.

   ≈ £76 / 75 €

   Check price on Amazon
